全自動密閉式灌粉系統
知識產權名稱：盒式灌粉浸液生產工藝
發明專利
專利號：ZL201610459467.1
知識產品名稱：灌粉封底浸液全自動生產方法及生產線
發明專利
專利號：ZL201610695261.9
知識產權名稱：管類零件夾緊密封結構
實用新型專利
專利號：ZL201320314994.5

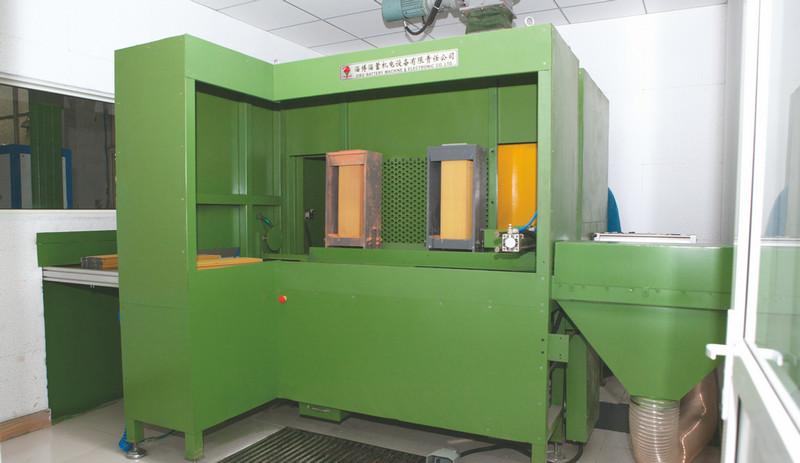

GF-Ⅰ 單工位灌粉機Single - station Lead Powder Filling Machine
設備用途：適用于管式鉛酸蓄電池正極板活性粉狀物質的填充
Used to fill the lead powder to the positive tubular plates
系統構成：物料儲存裝置、自動稱量裝置、混粉機、物料輸送裝置、定量下粉裝置、灌粉主機、回粉系統、除塵系統、控制系統。
Composition: Storage Silos, Automatic Weighting Devices, Blending Machines, Transportation Devices, Lead Powder Delivery Devices, Vibrators, Main Filling Machines, Lead Powder Recycling Machine, Dust Collection Devices and Controlling System.
性能、特點
1、 灌粉系統具有自動稱量、自動混粉、自動輸送、自動灌粉（可選配自動封底、自動清潔、封閉輸送）等功能；
2、 采用PLC程序控制，設有料位指示，定量下粉、灌粉定時功能；
3、 灌粉主機振幅可調；
4、 振動臺上散落的鉛粉能自動回收，灌粉機內粉塵負壓定向收集，由除塵系統過濾并進入回粉系統；
5、 設備運行平穩、安全、可靠，保養、維修簡單；
6、 設備工作噪聲和除塵尾氣排放符合國家標準。
7、 系統封閉循環，粉塵無泄漏，鉛粉循環利用。
Performance and Features
1. The system could weight, convey, mix, and fill the powder automatically ( buyer could order automatic sealing bottom bar devices, automatic cleaning devices, enclosed delivery devices separately) .
2. The system is controlled by PLC with the functions of level indication, powder weighting and powder filling timing.
3. The lead powder filling machine amplitude is adjustable.
4. The lead dust can be recycled by the negative pressure collection system and conveyed to the storage bin.
5. The system operation is safe, stable, and reliable with simple maintenance.
6. The noise and dust emissions are up to the national standard.
7. The system is wholely enclosed working, no lead powder leaking, lead powder could be recycle utilized

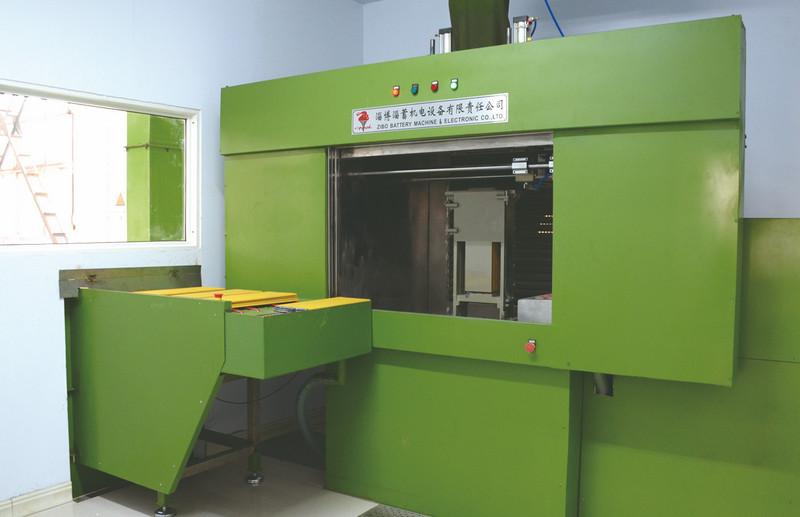

GF-IIa 自動灌粉封底一體機Automatic Lead Powder Filling & Bottom Bar Sealing Machine
預封底的板柵骨架 The pre-sealing bottom bar spine framework
預封底的板柵骨架 The pre-sealing bottom bar spine framework
GF-IIb 自動灌粉封底一體機Automatic Lead Powder Filling & Bottom Bar Sealing Machine
設備型號規格 Specifications
備注：
GF-Ⅰ 單工位灌粉機Single-Station Lead Powder Filling Machine
GF-Ⅱa 自動灌粉封底一體機Automatic Lead Powder Filling & Bottom Bar Sealing Machine
GF-Ⅱb 自動灌粉封底一體機Automatic Lead Powder Filling & Bottom Bar Sealing Machine
